How to Protect Flange Serration | Durable Flange Protectors
In industrial pipeline systems, flange serrations (tooth shaped structure of flange sealing surface) are the core components that protect the sealing performance of flanges. The inherent performance advantages of flange protectors make them an important component for protecting flange serrations in pipeline systems. The integrity of flange serrations directly determines whether the medium leaks and whether the system operates stably. The use of flange protectors racks provides comprehensive safety protection for flange serrations.
Description of Flange Protectors
Flange protectors are usually made of durable materials such as plastic PE, PP, PVC, etc. Common shapes include full face and bolt-hole type to adapt to different flange types and standards. Specially designed flange protectors racks can provide professional protection for flange serrations. The use of these flange protectors helps ensure that the flanges are not affected by scratches, dust, and chemicals, thereby reducing maintenance costs and extending the service life of the equipment.
Why Is It Important to Focus on Protecting the Flange Serration?
The structure design of the flange serration is precise. The serration shape design is to closely fit the gasket to form an effective seal. Because the flange serrations are often damaged during use, they need to be protected as a priority.
1.Mechanical Wear
Improper operation by the staff during installation and disassembly (forced connection, tool collision), as well as friction caused by long-term vibration, can all lead to serration surface wear and dullness.
2.Corrosion Damage
Metal serrations are prone to chemical corrosion when exposed to acidic or alkaline media, humid environments or industrial waste gas, resulting in rust, pits and other marks.
3.Foreign Object Damage
Impurities inside the pipeline and external dust entering the serration may cause deformation of the flange during connection.
Flange Protectors: Providing a Protective Foundation for Flange Serrations
- Serration structure that perfectly match the flange

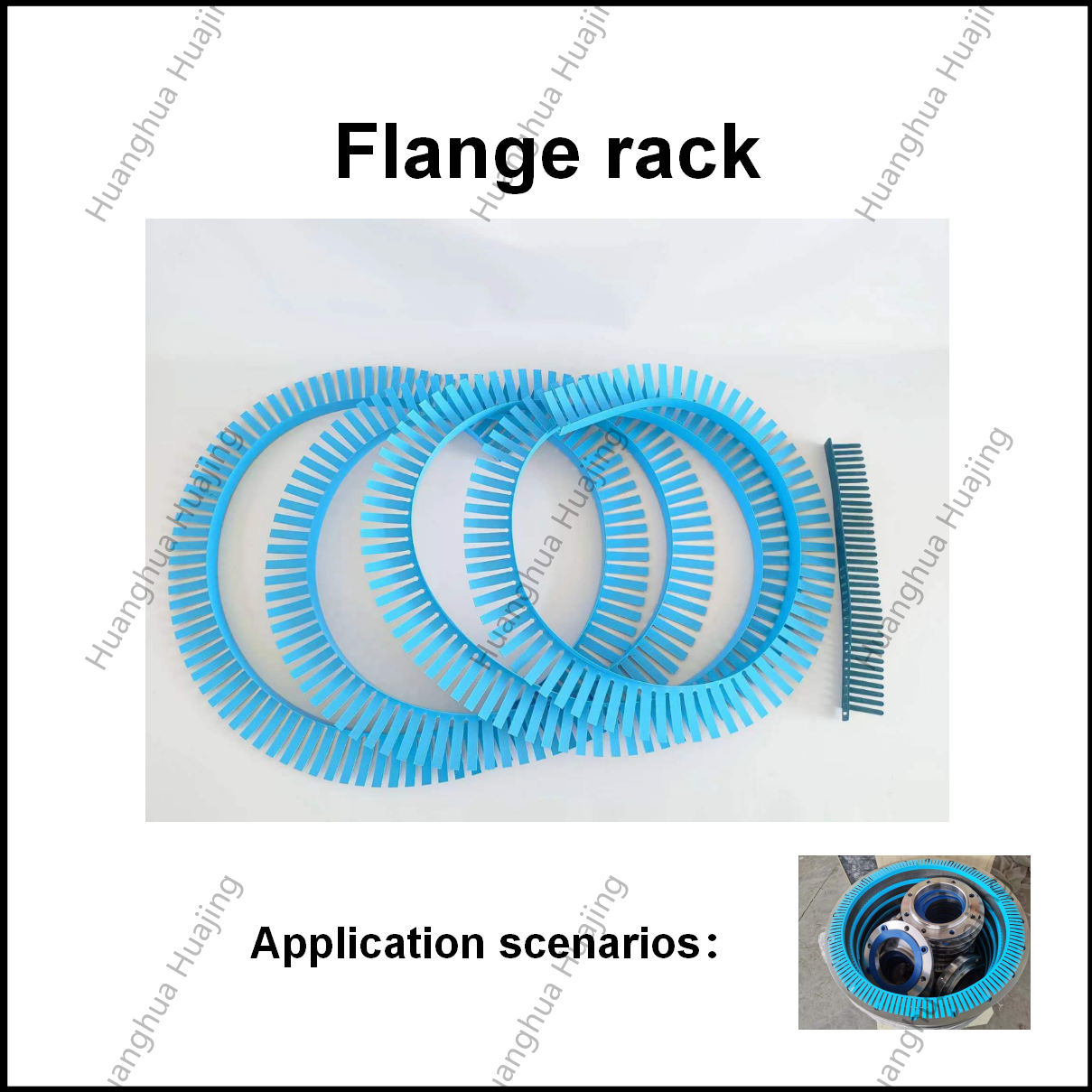

The rack of flange protectors will be processed according to the serration parameters of the flange, to ensure a seamless fit between the flange protectors and the serrations.
- Diversified material selection, wide applicability
The material of the flange protectors can be customized according to the specific needs of the user. The commonly used flange protectors materials have excellent high temperature resistance and corrosion resistance. In addition, plastic flange protectors are lightweight and cost-effective, providing basic protection for flange serrations while also reducing equipment load.
- Isolate external pollutants
After the installation of the flange protectors, a closed space will be formed by tightening the bolts, which can isolate solid impurities such as dust, metal debris, and welding spatter outside the pipeline, thereby avoiding wear or deformation caused by impurities accumulating between the serrations.
- Stability
The performance stability of flange protectors is mainly reflected in installation stability and adaptability to working conditions. After installation, the flange protectors will not loosen or shift, thus avoiding friction caused by flange serrations due to shaking. Under normal operating conditions, the flange protectors will not crack due to temperature changes.
How to Use Flange Protectors to Protect Flange Serrations?
1.Accurate selection
Matching serration parameters: Users can select the right model of flange protectors based on the flange diameter and serration type used. If you are not familiar with it, you can also consult the flange protector manufacturer directly. We will provide you with professional assistance.
2.Standardized installation
When installing the flange protectors, it is necessary to ensure that the flange protectors and flange are evenly fitted to avoid damaging the serrations during installation.
3.Regular maintenance
When the flange protectors deform, the sealing surface is damaged or severely corroded, the user needs to replace it in time to avoid affecting the protection of the serration due to the damage of the flange protectors.
Choosing the right flange protectors is not only to protect the flange serrations, but also to ensure the safety and efficiency of the entire industrial system. In practical applications, users need to accurately select based on the working conditions, so that the flange protectors can provide the best protection for flange serrations.
